C71 DRIVESHAFT

  • Out of stock

The full chapter is not available.

However, you can choose retail parts.

C71 DRIVESHAFT

€3,512.78
  • Out of stock
Pack content

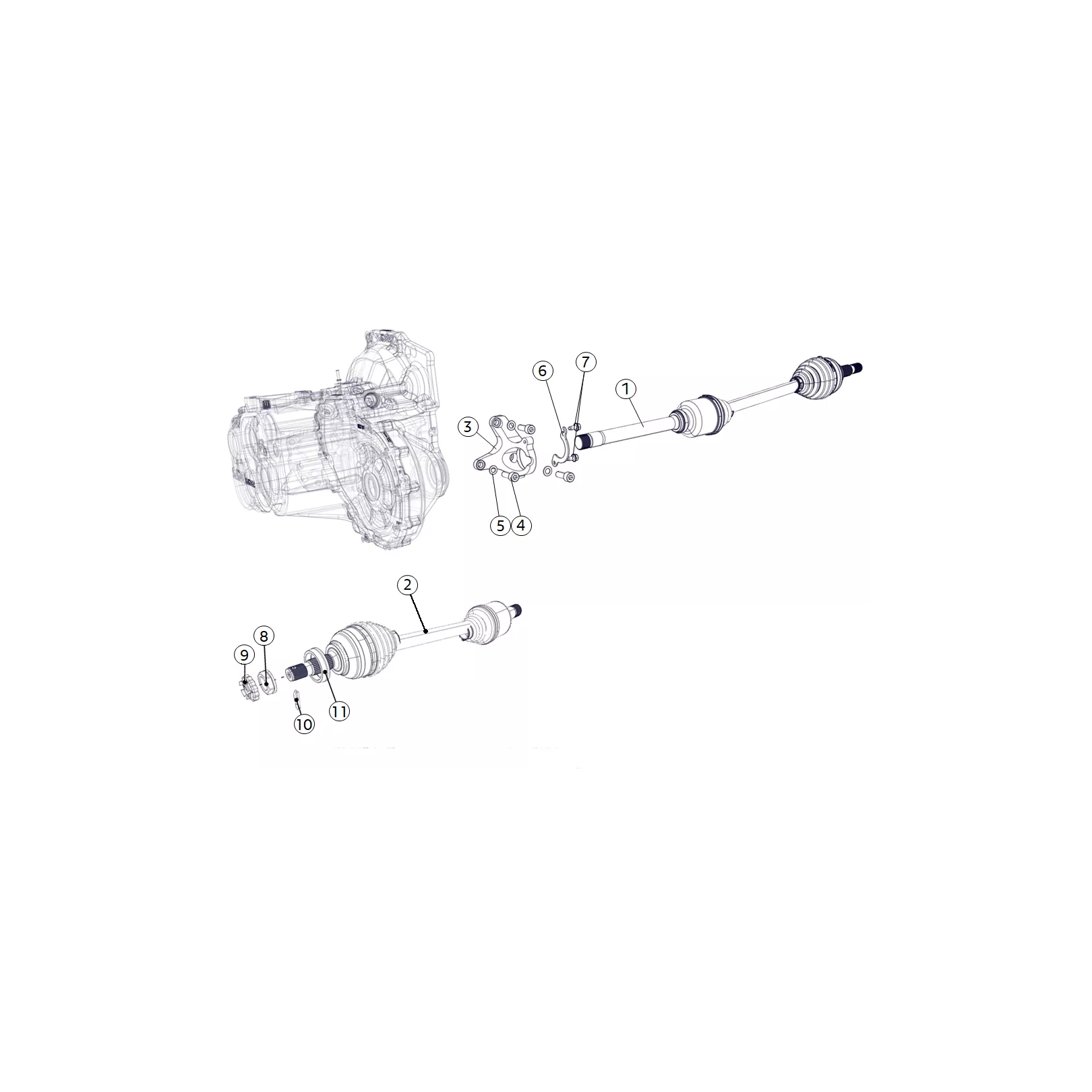

Ref Name Qty Price Number
  1 RIGHT DRIVESHAFT ASSEMBLED
904680118B
1 €1,333.20

  2 LEFT DRIVESHAFT ASSEMBLED
904703138C
1 €1,333.20

  3 FORGED BEARING HOUSING
904664968A
1 €294.12

  4 Screw CHC m10 lg30 cl12.9
PS82008A10
2 €2.24

  5 Onduflex Washer D10
PS86008A10
2 €0.69

  6 BEARING PLATE
904633248A
1 €10.42

  7 COLLAR SCREW DIAM 8X125-20
1611385380
2 €0.75

  8 WHEEL HUB FIXING NUT Ø24x150
3297-33
2 €5.54

  9 LOCK CAP NUT STUB AXLE
9808870380
2 €5.02

  10 HOLDING PIN
329703
2 €2.28

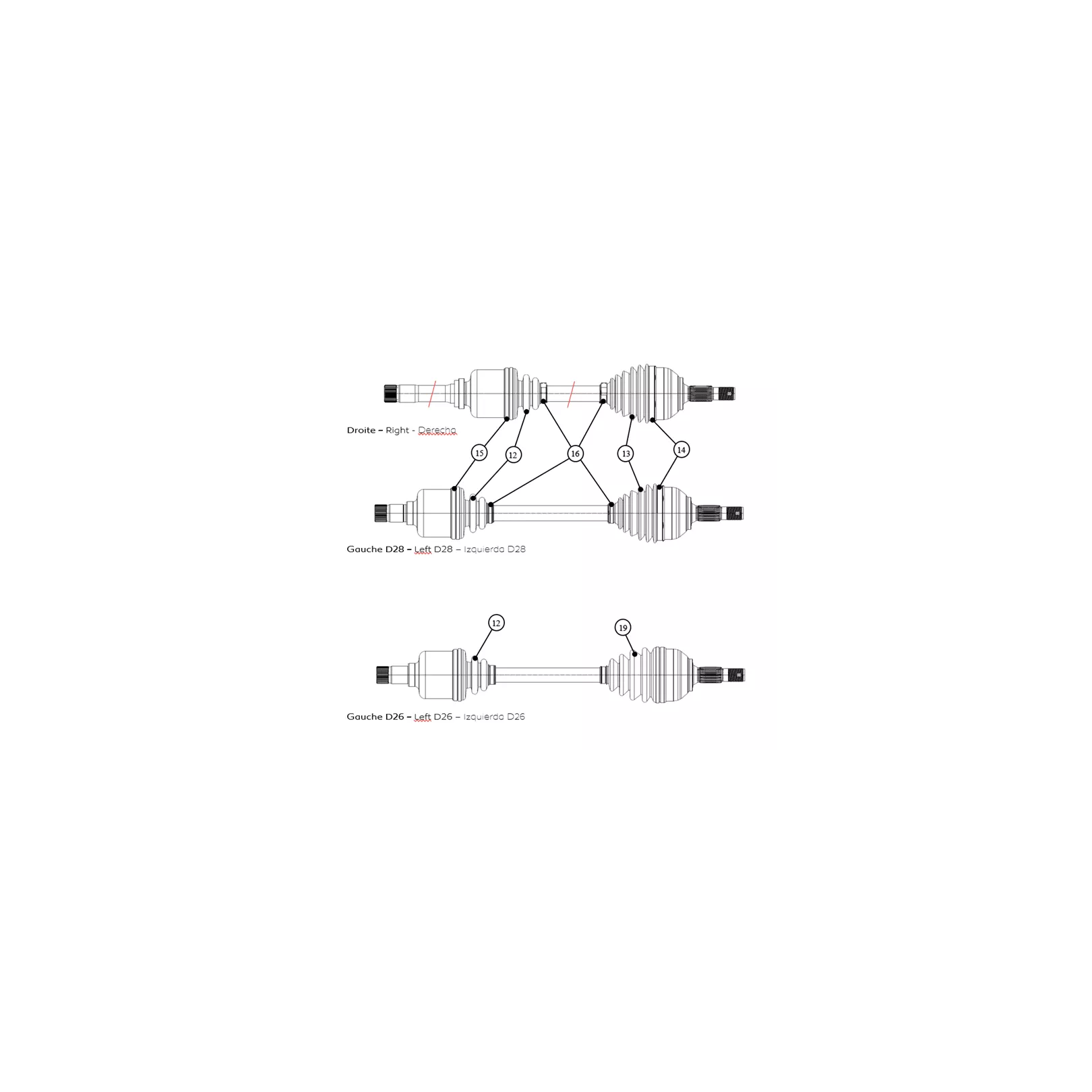

  11 12mm Driveshaft Spacer
904637318B
2 €67.71

  12 Gearbox side boot
9626153180
2 €88.06

  13 Wheel side boot
9655377080
1 €6.50

  14 Driveshaft Boot Mounting Collar
9657536280
2 €5.98

  15 NC
7903083156
2 €5.92

  16 Driveshaft Boot Mounting Collar
9621281180
4 €3.42

  17 Venting Ring
9554411580
4 €3.42

  18 Driveshaft grease N32186
Z0A0030929
12 €8.49

  19 Wheelside boot
903532398A
1 €37.52

€3,512.78
